Huawei NetCol8000-C150D 150kW Chilled Water Precision Air Conditioner with EC Variable-frequency Fan and Downflow Air Supply for Data Centers

1
MOQ
Inquiry
가격
Huawei NetCol8000-C150D 150kW Chilled Water Precision Air Conditioner with EC Variable-frequency Fan and Downflow Air Supply for Data Centers
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
모델: NetCol8000-C150D
전기 가열식: PTC
단위 중량(kg): 295
냉각 용량: 모델에 따라 다양하며 일반적으로 5kW ~ 50kW
가습기: 8
판매 포인트: 지속적으로 온도와 가습
공기량: 6000m3/h
습도 정확도: ±1.5%
보증: 1년
공기 정화 필터 수준: G4
단위 크기: 760*550*1900
주요 판매 포인트: 에너지 절약
기계 시험 보고서: 제공
팬 형: EC 팬
압축기 수량: 2개
필터: G4 공기 필터
기본 정보
원래 장소: 중국
브랜드 이름: HUAWEI
모델 번호: NetCol8000-C150D
결제 및 배송 조건
포장 세부 사항: 나무 상자
배달 시간: 5-8 주
지불 조건: 티/티
공급 능력: 달 당 500 세트
제품 설명
Description

Huawei NetCol8000-C150D is a 150kW chilled water room-level precision air conditioner specially developed by Huawei for medium and large data centers, IDC computer rooms, financial disaster recovery centers and operator base stations. It focuses on high-efficiency refrigeration, intelligent temperature control, high-reliability operation and maintenance, and green energy saving. It perfectly meets the constant temperature and constant humidity environmental requirements of high-density IT equipment, and is the core temperature control choice for data center infrastructure.

Appllcation

Medium & large data centers, IDC/EDC computer rooms, cloud computing centers

Financial institution headquarters, disaster recovery centers, bank trading computer rooms

Telecom core computer rooms, provincial-level base data centers

Government cloud, smart city and safe city data computer rooms

Key business computer rooms in energy, medical treatment, education and other industries


Specification

  • Rated Cooling Capacity: 150kW (Chilled Water Type)
  • Air Volume: 13750m³/h
  • Fan Type: EC Variable-frequency Centrifugal Fan
  • Humidification Type: Wet Membrane Humidification 7kg/h
  • Electric Heating: PTC Heating 12kW
  • Power Supply: 380-480V / 3Ph / 50-60Hz
  • Dimension (W×D×H): 1200mm×850mm×2000mm
  • Weight: Approx. 360kg
  • Air Supply Mode: Downflow, Room-level Installation

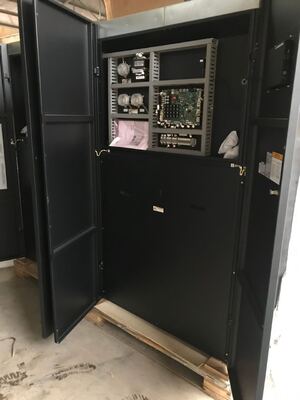

Product Display

Huawei NetCol8000-C150D 150kW Chilled Water Precision Air Conditioner with EC Variable-frequency Fan and Downflow Air Supply for Data Centers 0

Huawei NetCol8000-C150D 150kW Chilled Water Precision Air Conditioner with EC Variable-frequency Fan and Downflow Air Supply for Data Centers 1

Huawei NetCol8000-C150D 150kW Chilled Water Precision Air Conditioner with EC Variable-frequency Fan and Downflow Air Supply for Data Centers 2

Huawei NetCol8000-C150D 150kW Chilled Water Precision Air Conditioner with EC Variable-frequency Fan and Downflow Air Supply for Data Centers 3Huawei NetCol8000-C150D 150kW Chilled Water Precision Air Conditioner with EC Variable-frequency Fan and Downflow Air Supply for Data Centers 4

Huawei NetCol8000-C150D 150kW Chilled Water Precision Air Conditioner with EC Variable-frequency Fan and Downflow Air Supply for Data Centers 5


Huawei NetCol8000-C150D 150kW Chilled Water Precision Air Conditioner with EC Variable-frequency Fan and Downflow Air Supply for Data Centers 6

Huawei NetCol8000-C150D 150kW Chilled Water Precision Air Conditioner with EC Variable-frequency Fan and Downflow Air Supply for Data Centers 7
