| No. | Category | Parameter | Value |
|---|---|---|---|

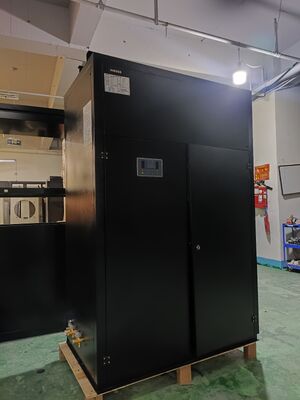

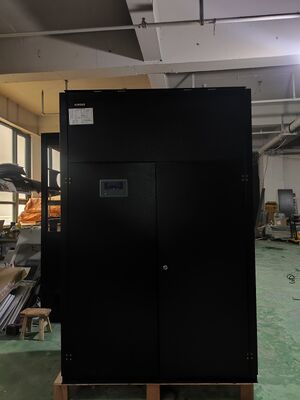

| 1 | Unit Performance | Indoor Unit Model | S41 |
| 2 | Air Volume (m³/h) | 12,470 | |
| 3 | Cooling Capacity (kW) | 45.8 | |
| 4 | Number of Compressors (Unit) | 2 | |
| 5 | Operation Mode | Constant Temperature & Humidity | |
| 6 | Compressor Type | Scroll Compressor | |
| 7 | External Static Pressure (Pa) | 30 | |
| 8 | Power Supply (V) | 380-50HZ | |
| 9 | Refrigerant | R410a | |
| 10 | Expansion Valve | Thermostatic Expansion Valve | |
| 11 | Electric Heating Type | PTC | |
| 12 | Electric Heating Power (kW) | 18 | |
| 13 | Humidification Type | Wet Film | |
| 14 | Humidification Capacity (kg/h) | 13 | |
| 15 | Temperature Control Range (℃) | 17-30 | |
| 16 | Humidity Control Range (RH%) | 45-75 | |
| 17 | Temperature Control Accuracy (℃) | ±2 | |
| 18 | Humidity Control Accuracy (RH%) | ±5 | |
| 19 | Indoor Unit | Evaporator Type | Copper Tube with Aluminum Fins |
| 20 | Air Filter | Primary Efficiency | |
| 21 | Indoor Fan Type | AC | |
| 22 | Overall Dimensions - Width (mm) | 1200 | |
| 23 | Overall Dimensions - Depth (mm) | 750 | |
| 24 | Overall Dimensions - Height (mm) | 2000 | |
| 25 | Net Weight (kg) | 380 | |
| 26 | Gross Weight (kg) | 420 | |
| 27 | Outdoor Unit | Outdoor Unit Model | M41 |
| 28 | Overall Dimensions - Width (mm) | 1400 | |
| 29 | Overall Dimensions - Depth (mm) | 850 | |
| 30 | Overall Dimensions - Height (mm) | 1600 | |
| 31 | Net Weight (kg) | 220 | |
| 32 | Gross Weight (kg) | 250 | |
| 33 | Connection Details | Connection Pipe Length (m) | 15 (Max 30) |
| 34 | Liquid Pipe Diameter (mm) | 12 | |
| 35 | Gas Pipe Diameter (mm) | 22 | |
| 36 | Power Supply Cable | 3*4² | |
| 37 | Indoor-Outdoor Unit Connection Power Cable | 3*2.5² | |
| 38 | Humidifier Water Inlet Pipe (φmm) | 20 | |
| 39 | Condensate Drain Pipe (φmm) | 25 |
