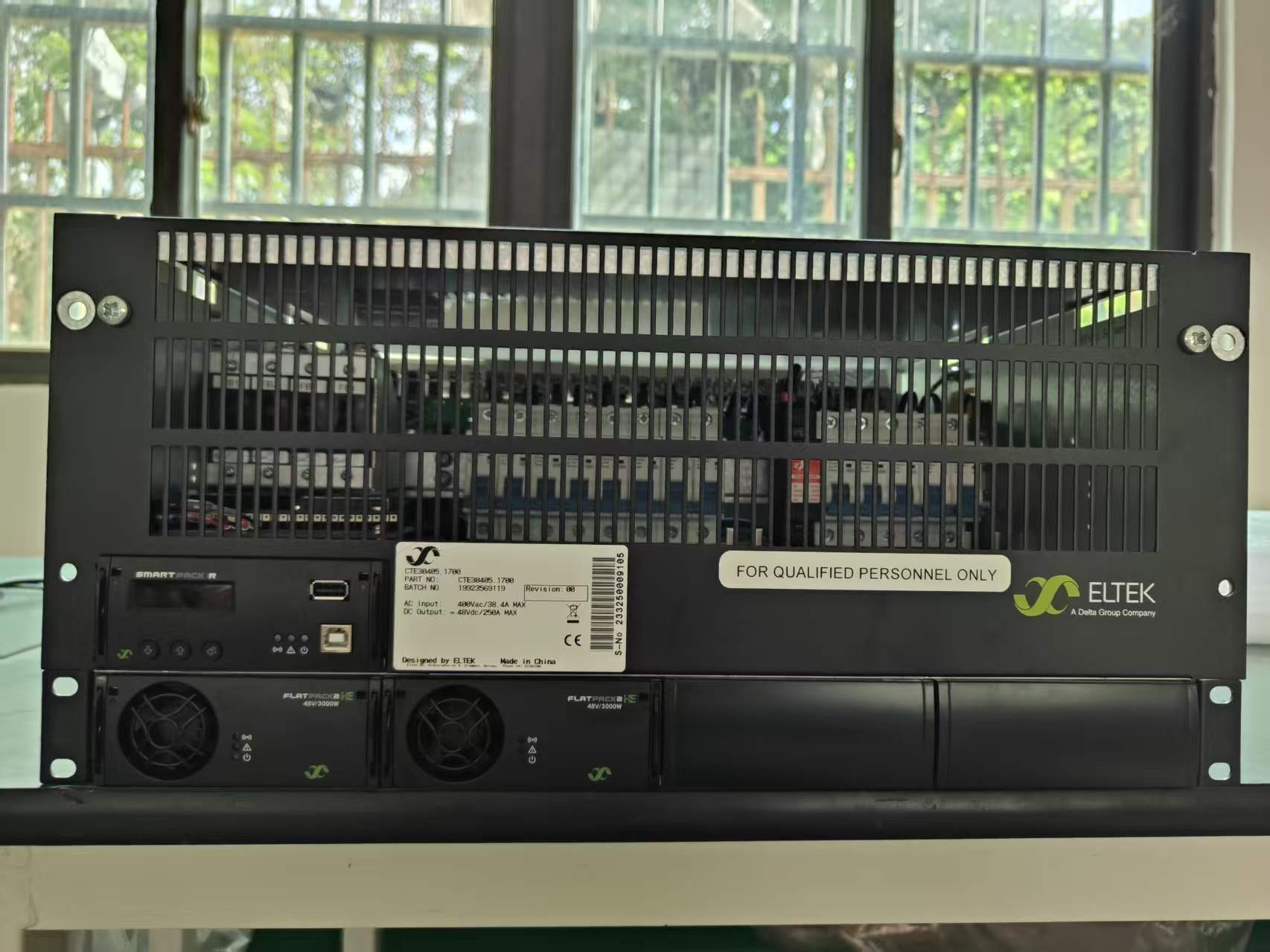

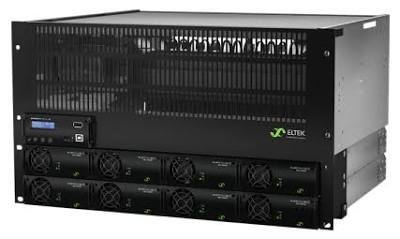

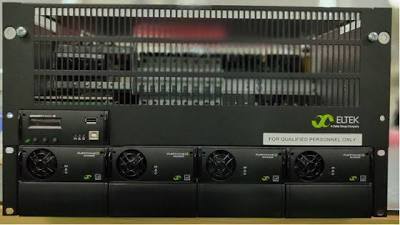

This Eltek 12kW Powercore is designed with a sophisticated power management architecture to protect your network assets. The system features a comprehensive distribution panel, including 4 x 125A battery breakers and a diverse array of load breakers (ranging from 16A to 63A) to accommodate various equipment requirements. It distinguishes between priority and non-priority loads (NPL), allowing for intelligent load shedding during extended power outages to preserve battery life for the most critical services. With 4 dedicated spare slots (F1-F17), the Powercore provides the flexibility for future expansion without the need for a complete system overhaul. Each component is hot-swappable, meaning maintenance or upgrades to the Flatpack2 48/3000 HE modules can be performed without interrupting the power supply. This modularity, combined with the comprehensive circuit protection, makes it an ideal choice for complex network hubs where downtime is not an option.
| Product Name | 48Vdc 12kW Powercore |
| Brand | Eltek |
| System Height | 5U High-Density Rack Mount |
| Total Output Power | 12kW (Max) |
| Nominal Output Voltage | 48Vdc (Adjustable range typically 43.2 - 58Vdc) |
| Rectifier Modules | 4 x Flatpack2 48/3000 HE (P/N: 241119.105) |
| Rectifier Slots | 4 x Rectifier Slots (Full occupancy) |
| System Controller | Smartpack R Intelligent Controller |
| Battery Distribution | 4 x 125A/1P Battery Breakers |
| NPL Distribution | 2 x 63A, 3 x 25A (Non-Priority Load) |
| Load Distribution | 2 x 40A, 4 x 25A, 2 x 16A (No-Priority Load) |
| Spare Slots | 2 x Spare (F1-F10) & 2 x Spare (F11-F17) |
| Efficiency | Up to 96.5% (High Efficiency technology) |
| Operating Temperature | -40°C to +75°C (-40°F to +167°F) |
